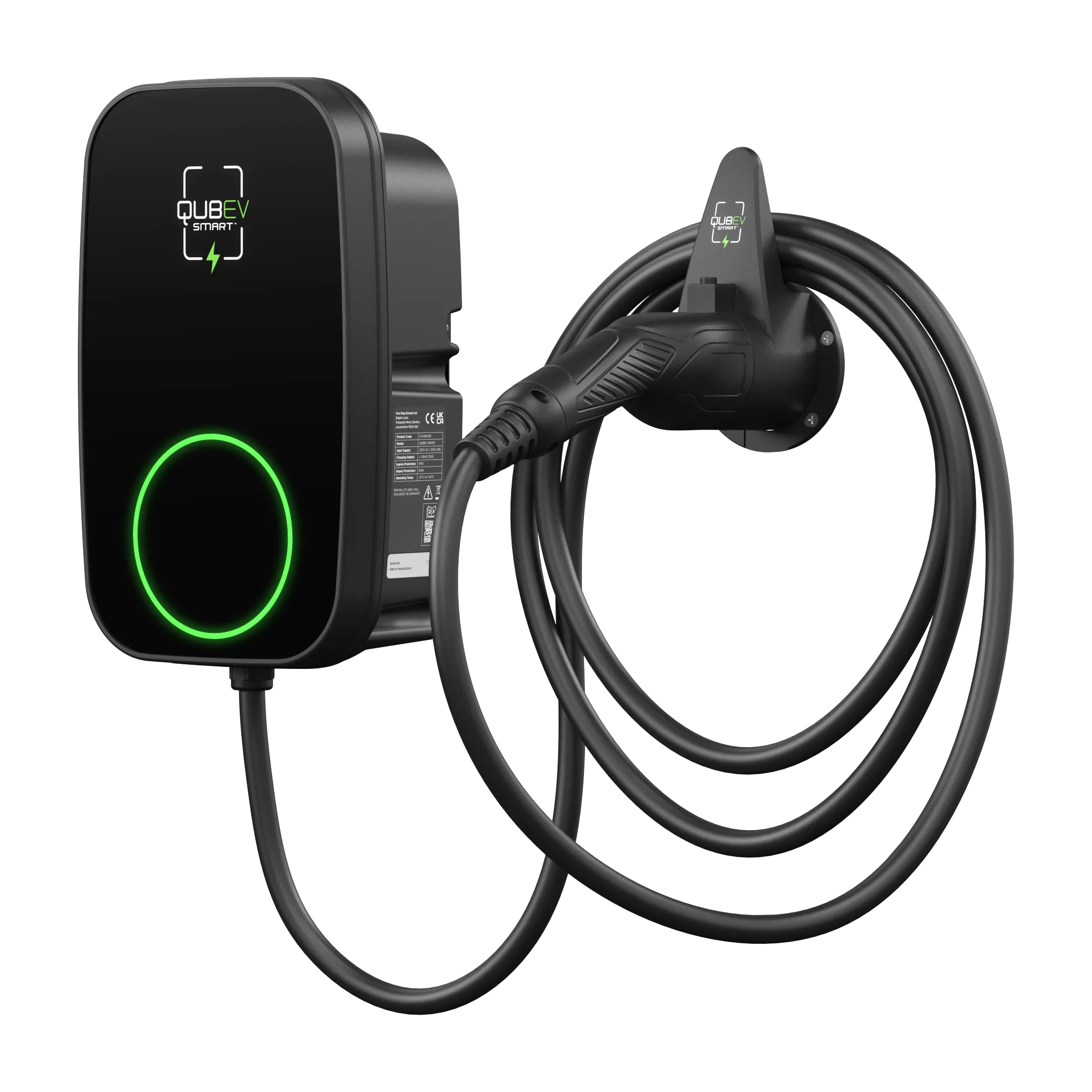

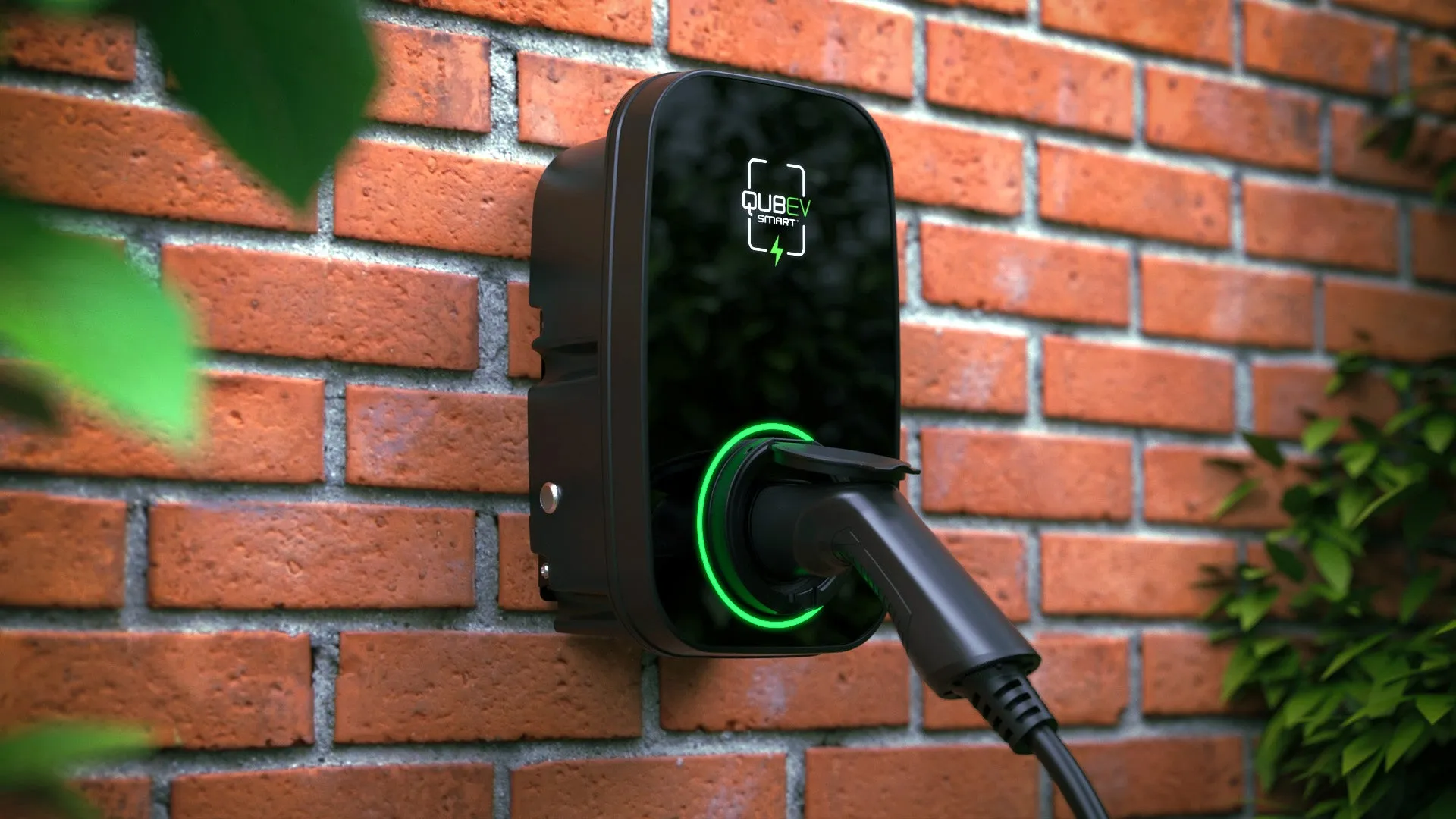

Rolec EVON0095 QUBEV Smart EV Charger Type 2 5m Tethered 32A (7.4kW)
The QUBEV Smart charging range offers affordable EV charging points which are packed with the latest features, making them the ideal solution for your home.
With models providing up to 7.4kW or 22kW, these intelligent, modern yet low-cost units have been designed to provide electric vehicle drivers with an affordable charging solution, without compromising on quality. Compatible not only with all EVs and PHEVs on the market, but also with Solar power.

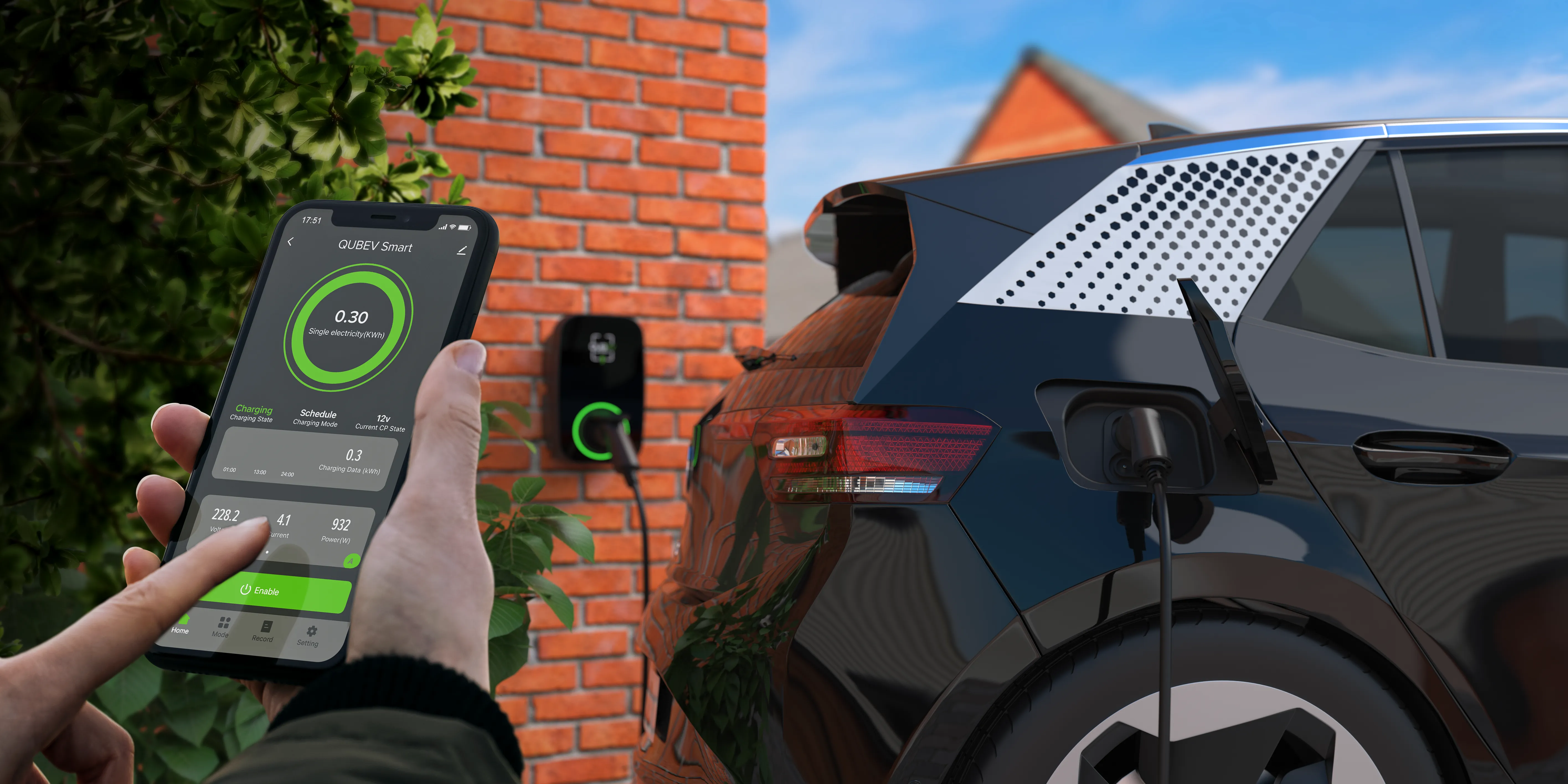

The QUBEV Smart app gives you full control of your charger. From scheduling your charging session for when your electricity is cheapest, adjusting the power rating, monitoring your energy usage and much more.
EV drivers can enjoy a seamless charging experience, ensuring their EV will be ready for their next electrified adventure.
ADJUSTABLE POWER - Choose from 7.4kW single-phase or 22kW three-phase models which by default are set to 32A – however, if a lower power setting is required, the power rating can be adjusted between 10A, 13A, 16A & 32A using the internal Amp selector.
SLEEK & COMPLIANT - Offering a modern and discreet home electric vehicle charging solution, that’s compatible with all EVs and PHEVs on the market, provided that you have the corresponding cable to plug in. The QUBEV Smart is also tested to meet UKCA & CE standards.
SAFE AND SECURE - The QUBEV Smart range are packed with the latest safety features and fully comply with the latest UK Smart Charge Points Regulations including security logs and alerts.

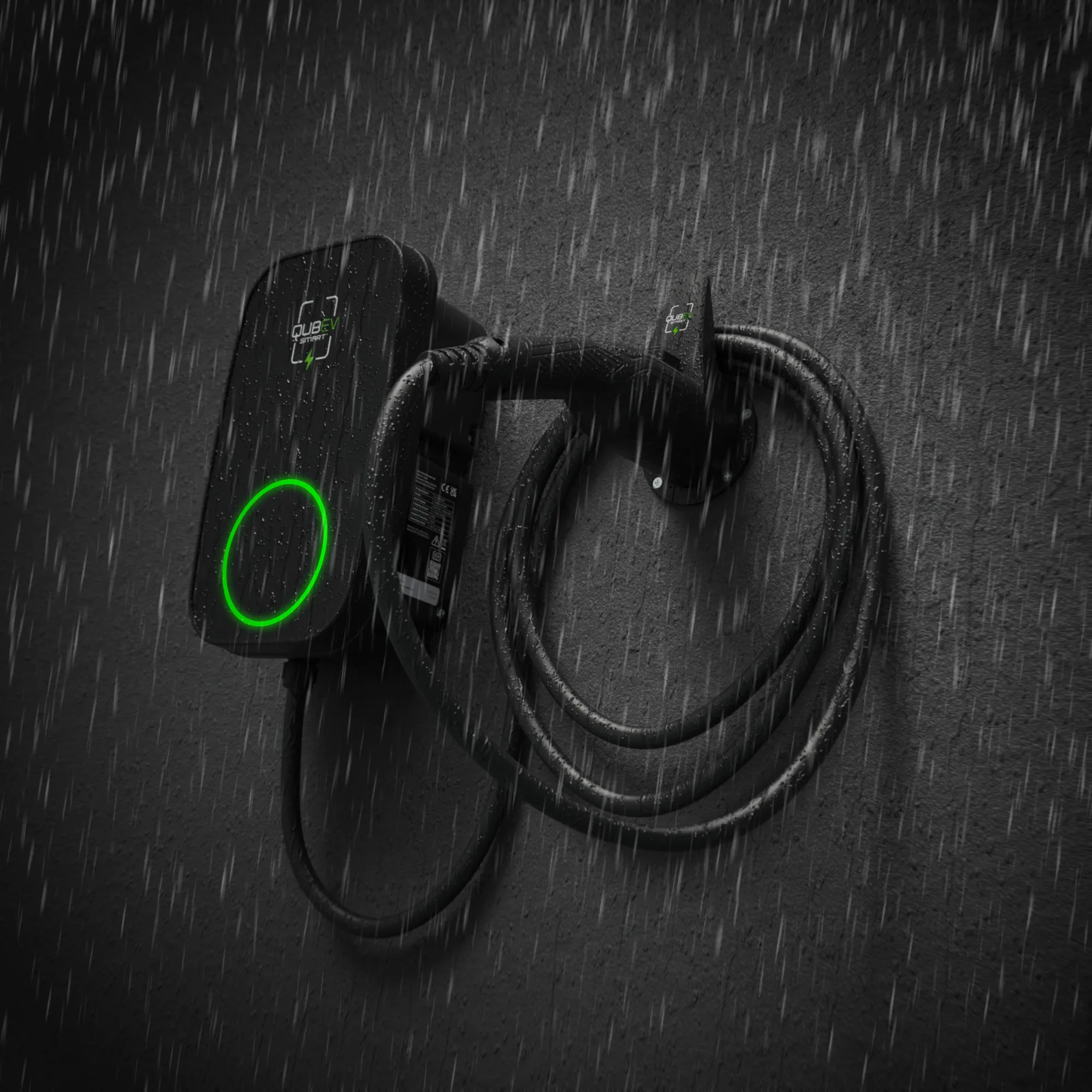

STRONG & DURABLE - The IP65 weatherproof rated enclosure is made from durable ABS and Polycarbonate ensuring it can withstand the harshest of weather conditions for years to come.
3 YEAR WARRANTY - The QUBEV Smart electric vehicle charging units come with a 3 year warranty and UK support included as standard, for added peace of mind on your investment.
Features:
- Universal charging socket or Type 2 tethered lead
- Power rating – Up to 7.4kW or 22kW models
- Adjustable power rating – 10A, 13A, 16A & 32A
- Free QUBEV Smart Wi-Fi app
- Scheduled / off-peak charging
- Solar compatible (single phase models only)
- PME & residual current protection (AC 30mA Type A, DC 6mA)
- Dynamic load balancing (CT clamp(s) & cable(s) included)
- OCPP 1.6 compliant
- Built-in LED charging status indicator
- Meets UK Smart Charge Point Regulations inc. tamper security
- Wi-Fi / Ethernet connectivity
- IP54 & IK08 rated
- Corrosion & fire resistant
- CE and UKCA certified
- Easy to install and maintain
- Wall or post mounting options
- OZEV grant fundable
- 3 Year warranty
Specifications:
- Connection Type: 1x Type 2 (IEC 62196)5m tethered lead*
- Charging Output: Up to 7.4kW (32A)
- Input Supply: 1x 32A Single Phase 230V AC (±10 %) 50/60Hz
- Colour: Black
Data Sheet:
Instruction Manual:
