Specifications

• • DSP settings and adjustments made via PC or optional Smart phone app

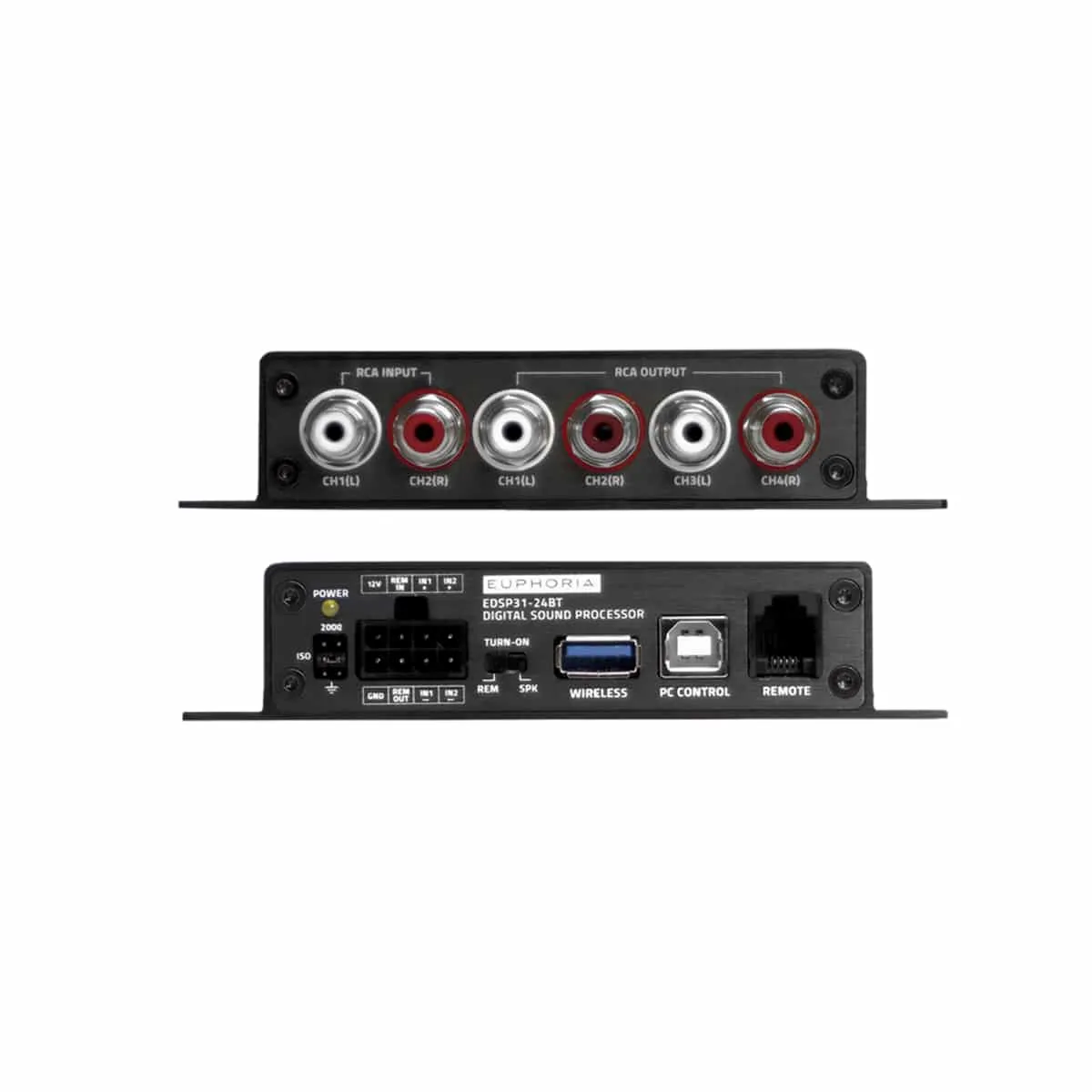

  • 2 assignable inputs
  • Selectable Audio Input: low-level or hi-level
  • 4 independently assignable low -level outputs
  • Selectable crossover slopes ( 6, 12, 18, 24, 30, 36, 42, 48 dB/octave )
  • 31 band graphic EQ with fine tuning
  • Adjustable high, band-pass, or low-pass filters （ 20Hz-20KHz )
  • Adjustable Time alignment per output channel
  • Adjustable Q-Factor per frequency
  • Phase adjustment: switchable 0/180 degrees on all output channels
  • Audio Sensing Auto remote output
  • Includes USB cable and software download QR codes for windows

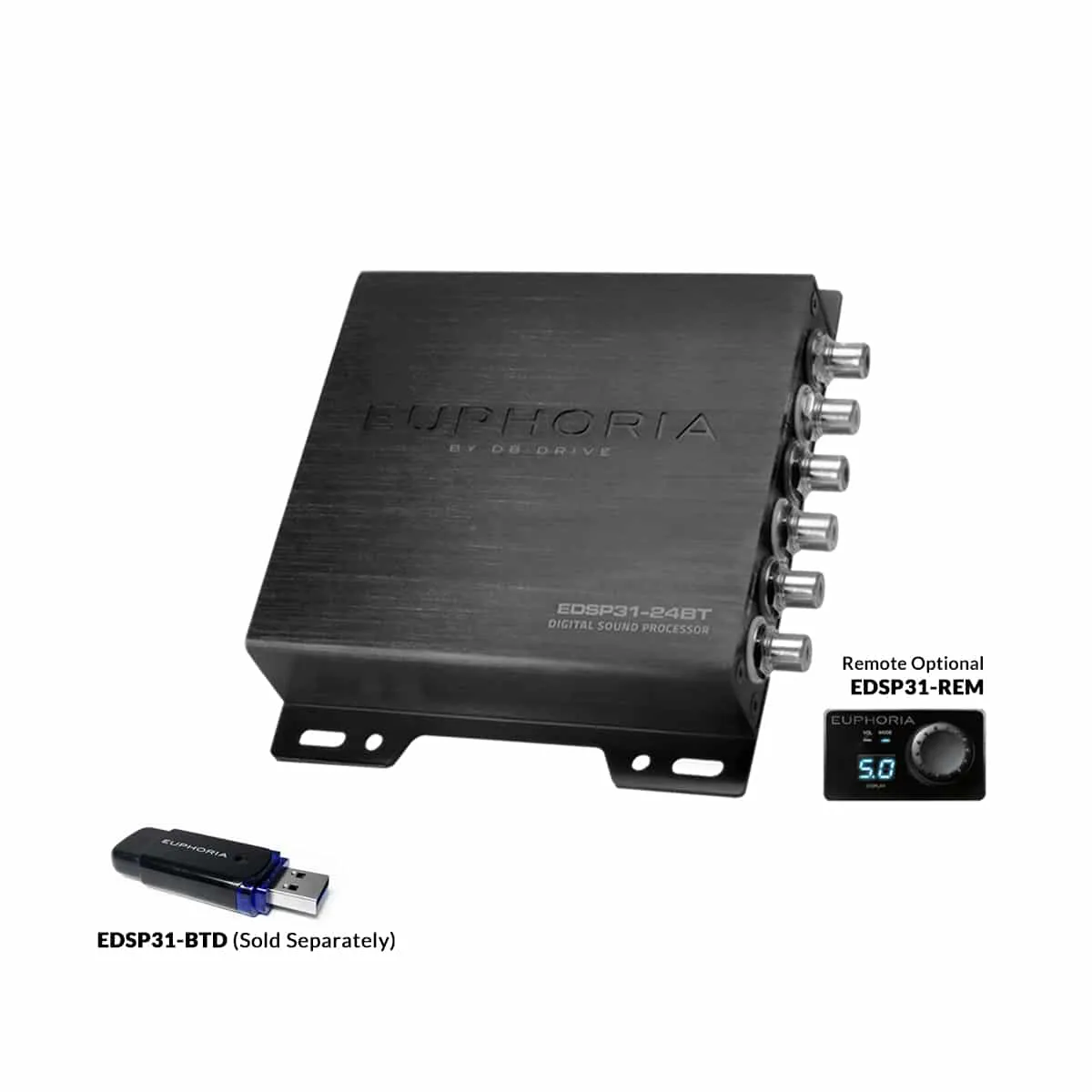

  • Optional Dash remote with subwoofer control ( sold separately )
  • Compatible Microsoft Windows® XP SP3 / Vista / 7 / 8 / 8.1 / 10

Dimensions

• 4.48" x 5.23" x 1.10" – L x W x H
• 114 mm x 133 mm x 28 mm – L x W x H
