This New Mid Travel Rear Suspension kit adds to our proven hydraulic rear bump stop kit and secondary rear shock mount system.  It is the absolute best rear suspension kit available for your Bronco Raptor & here's what it features:

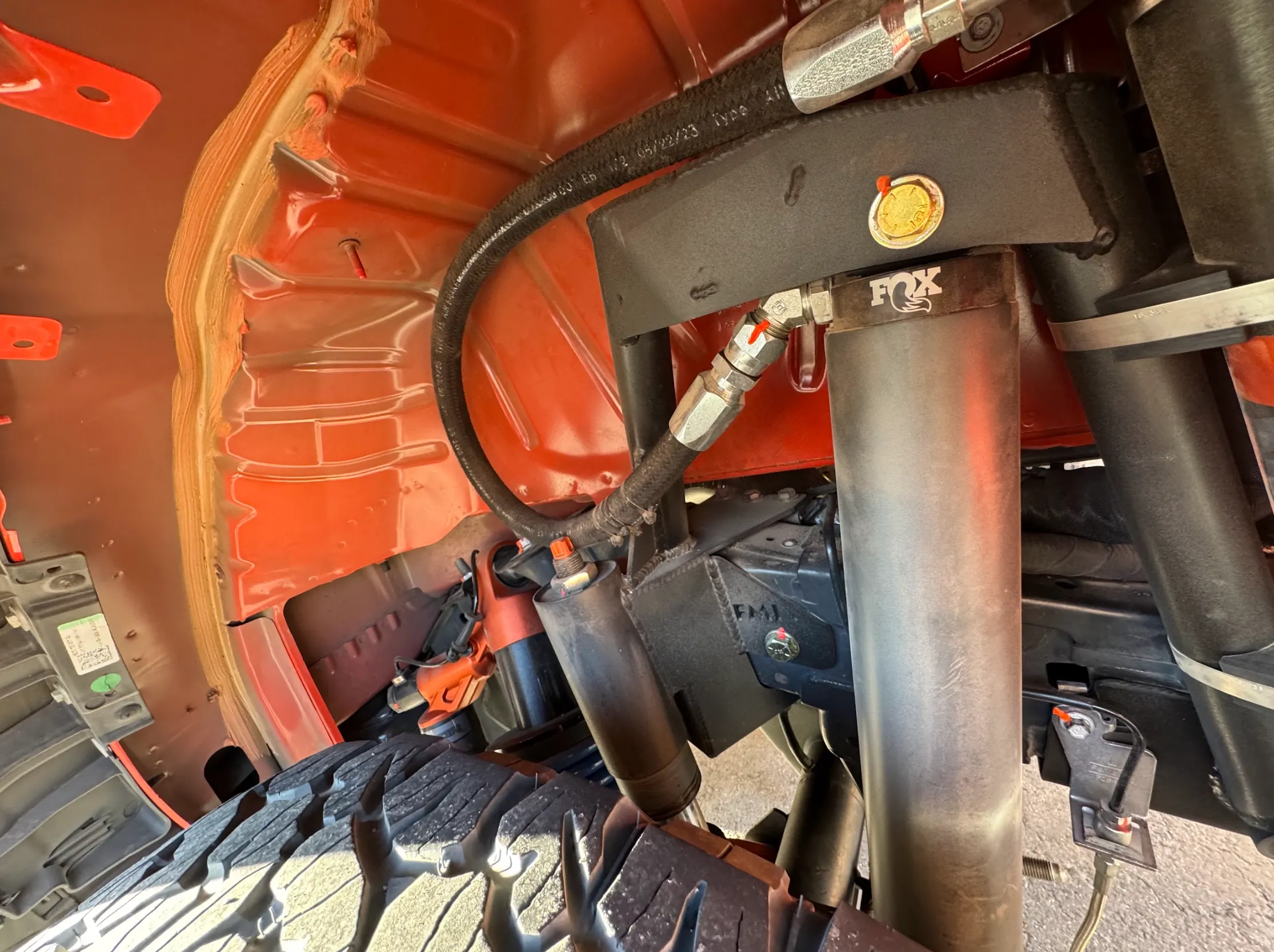

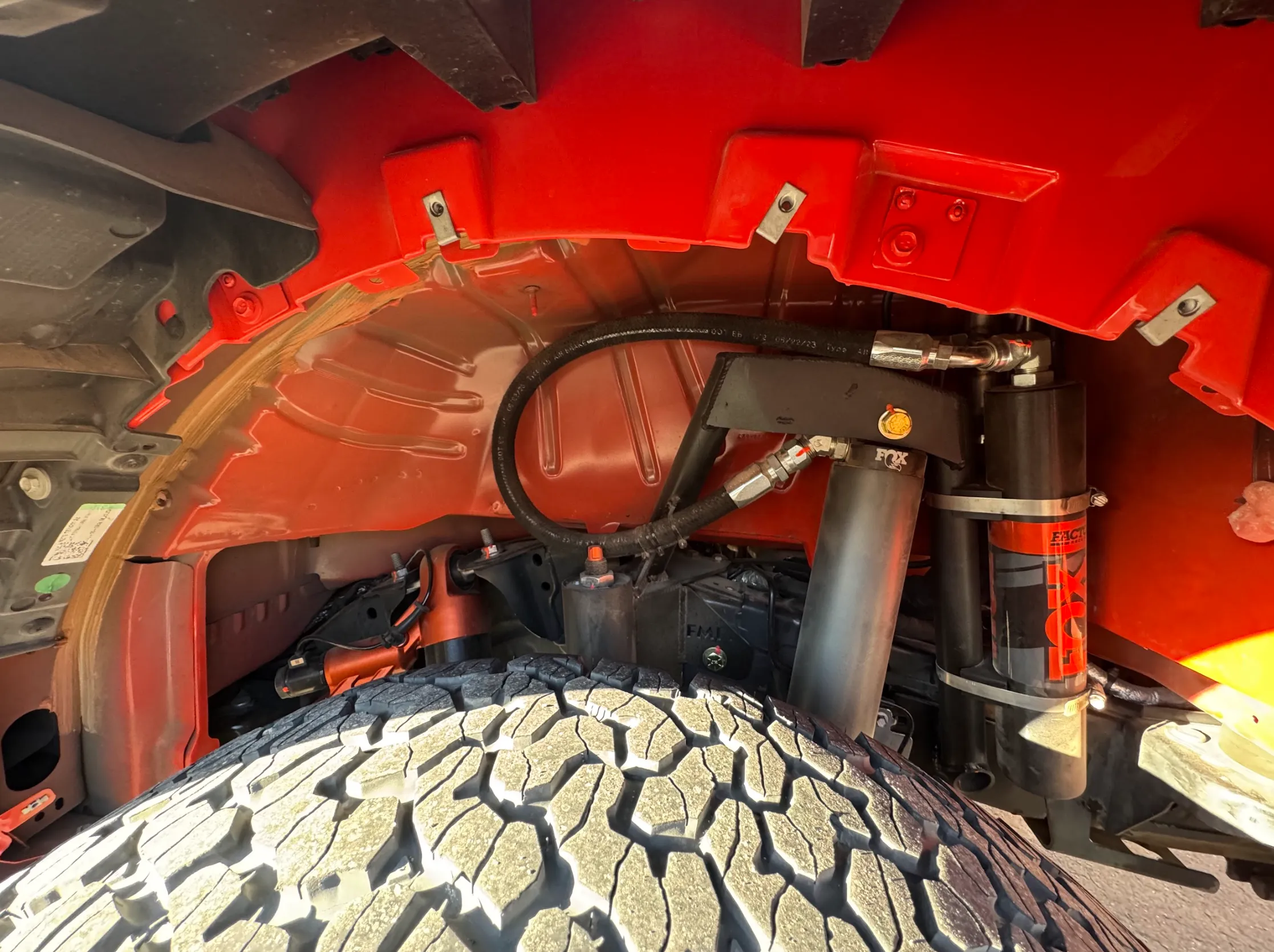

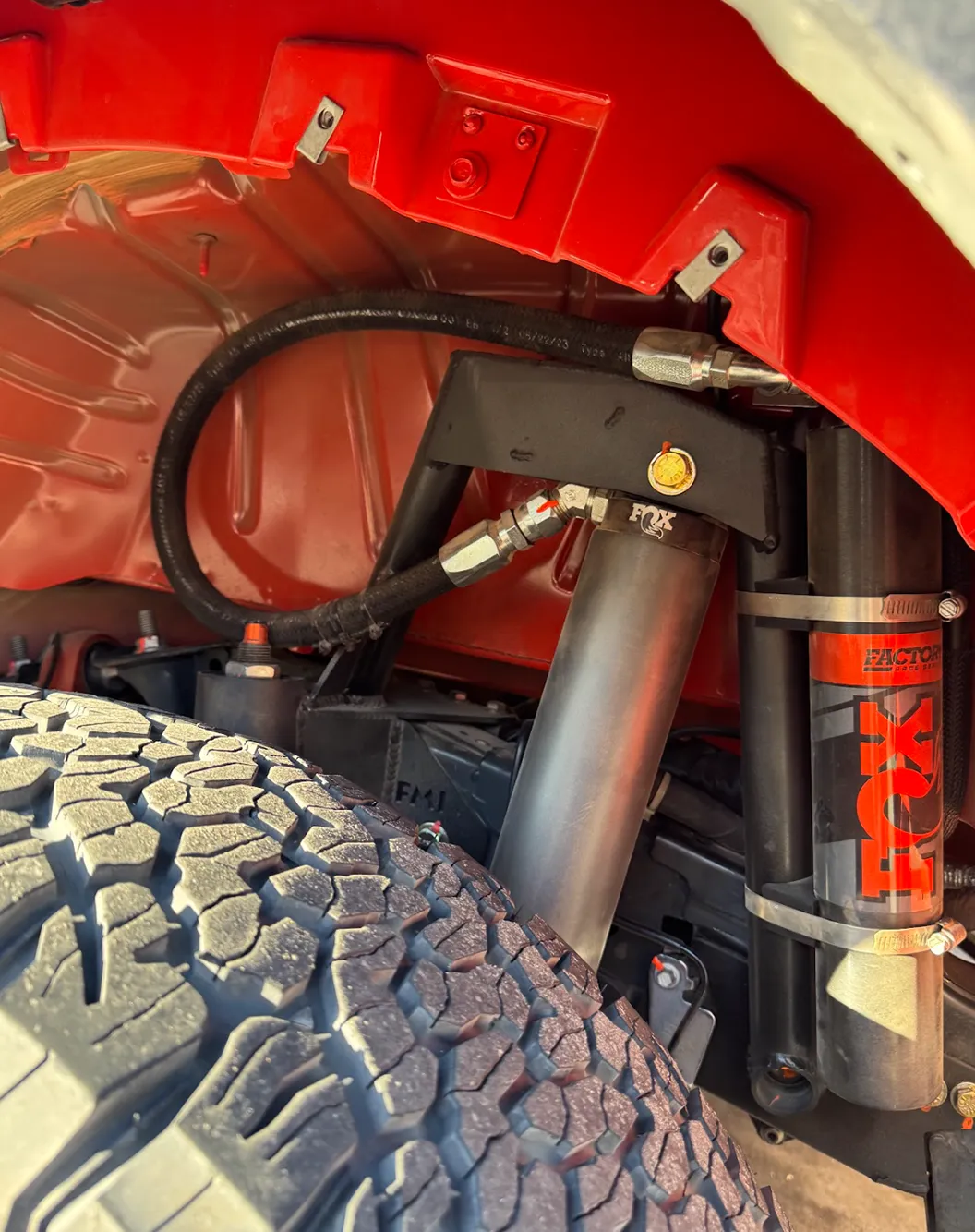

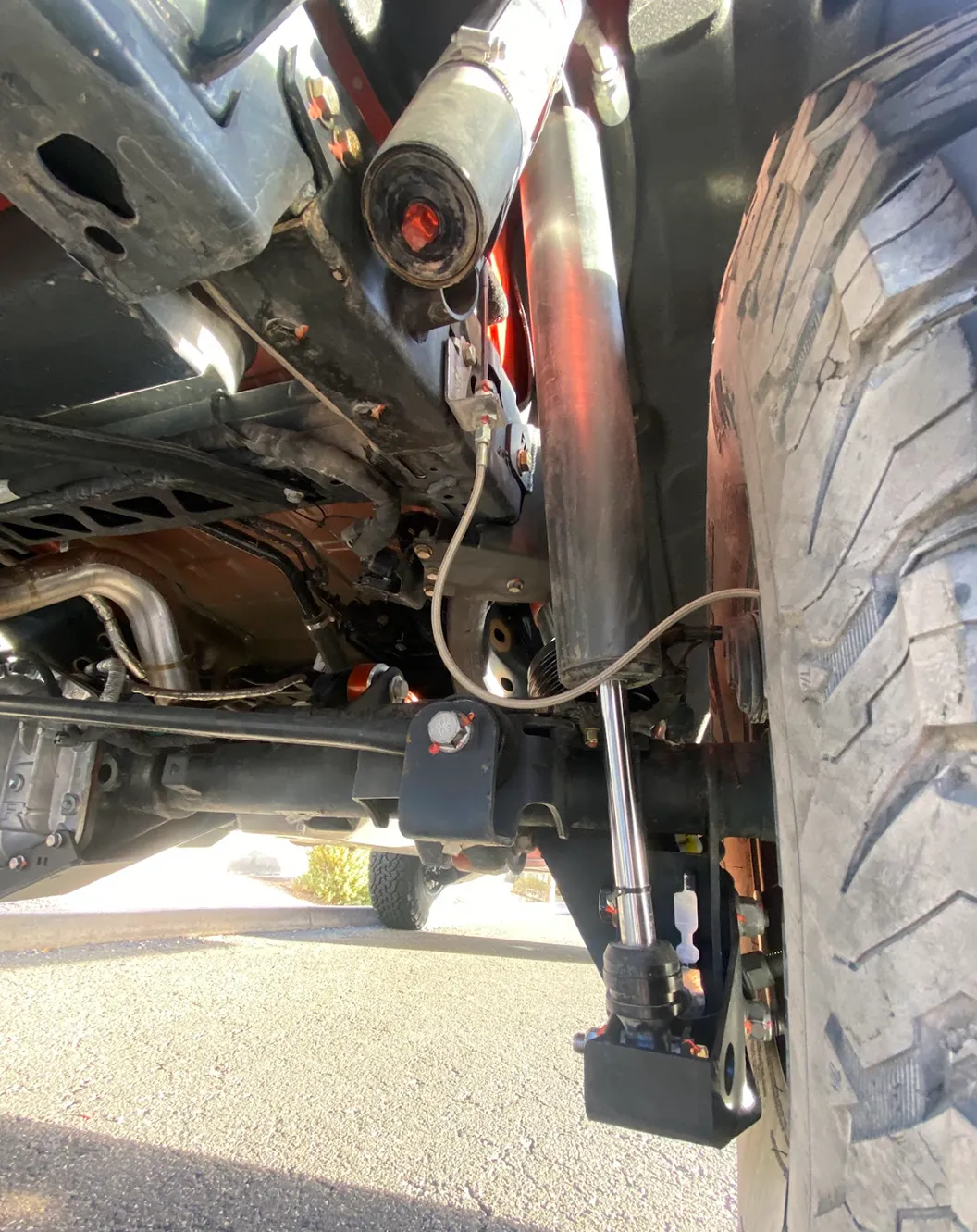

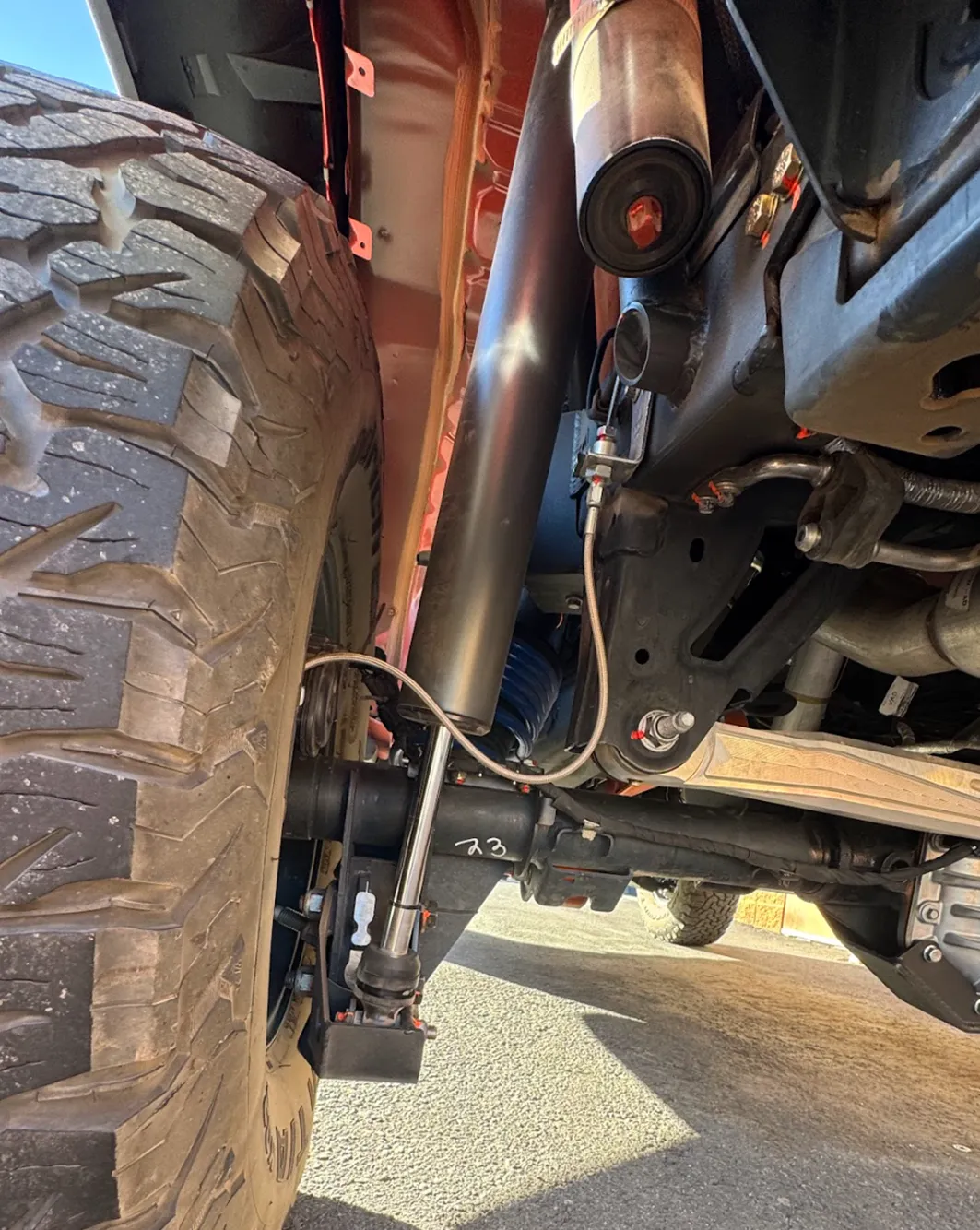

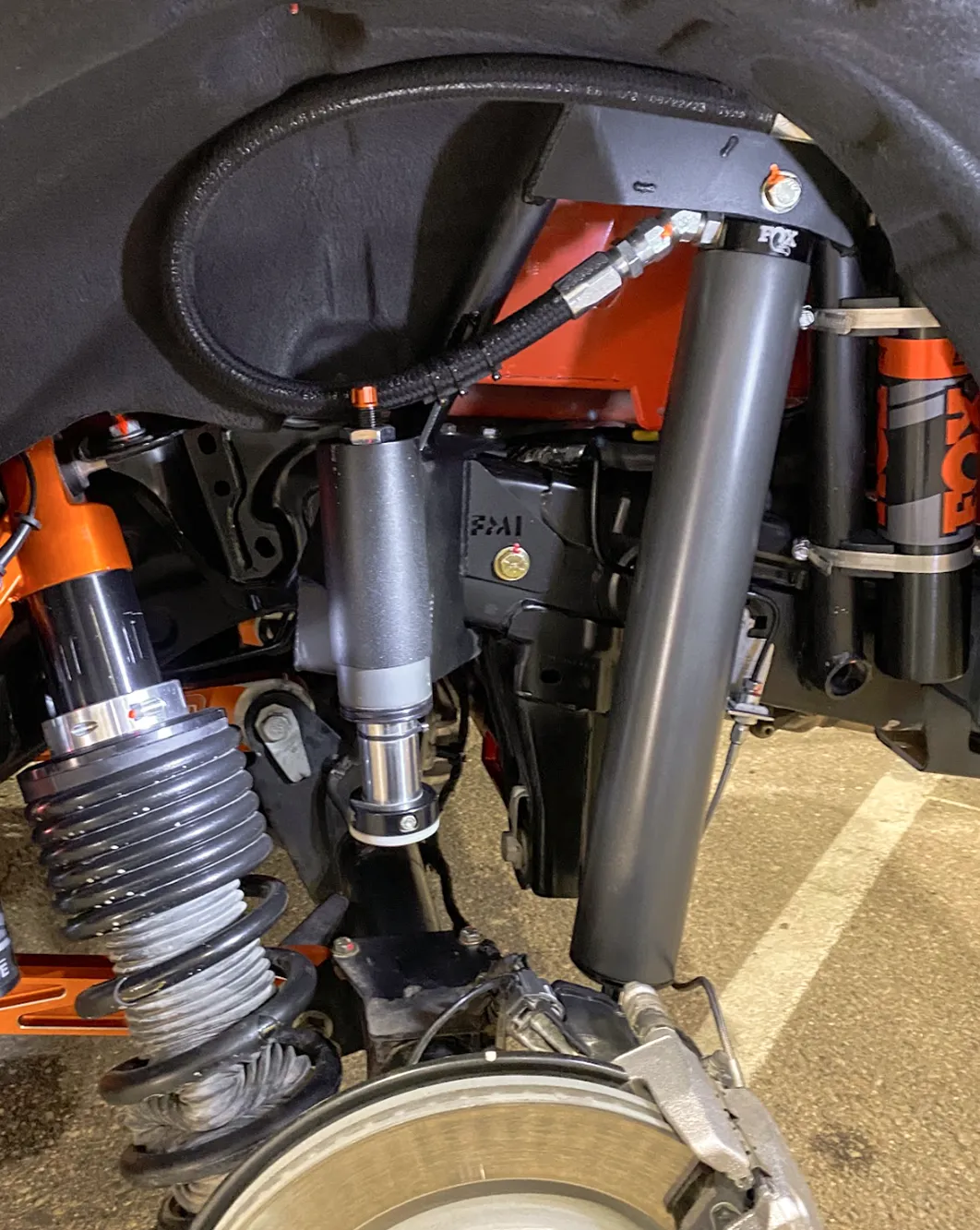

Shown here with smooth body shock

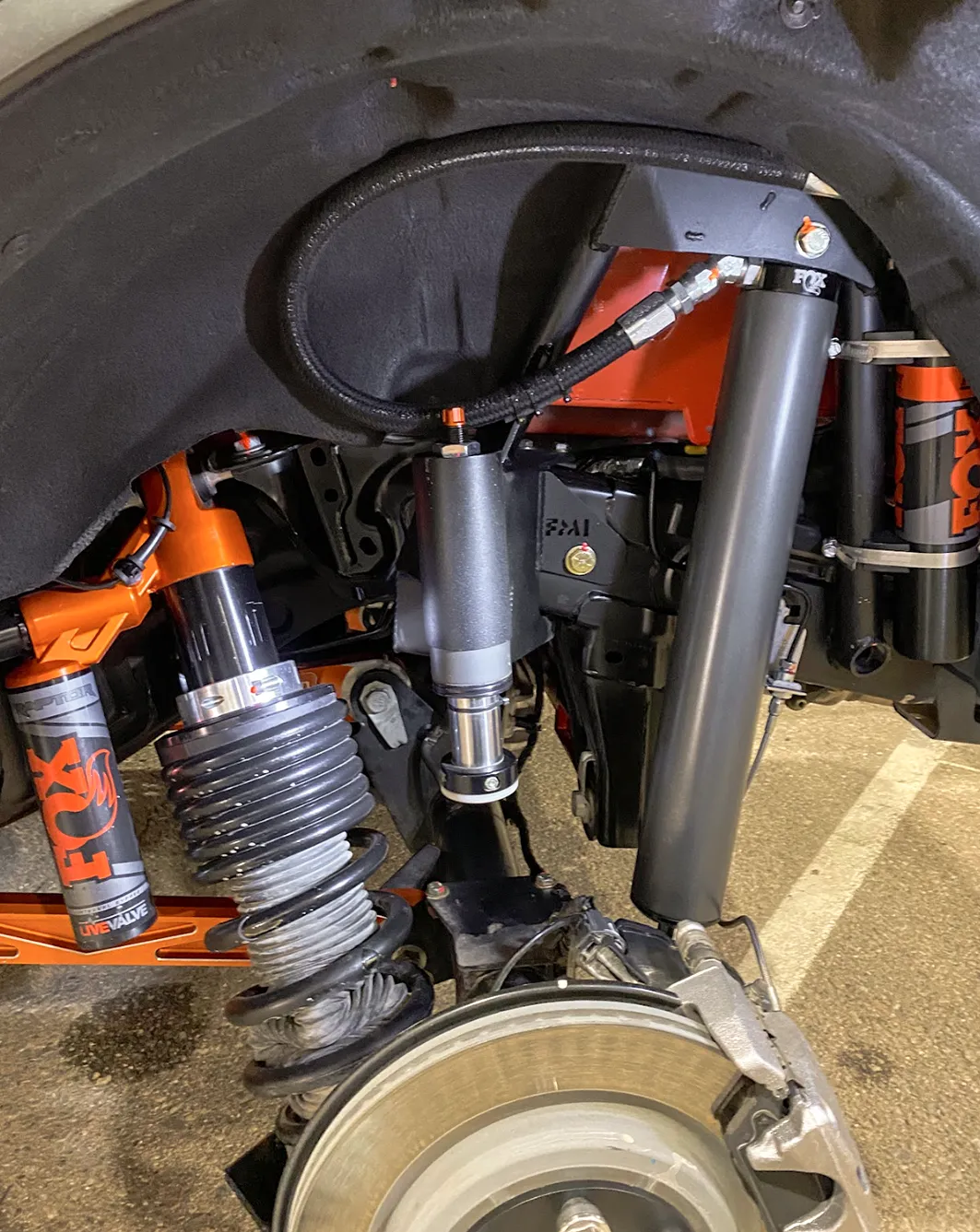

• The Rear By-Pass Shock Mount allows you to add a 2.5" dia hydraulic bump stop of your brand choice and works with the stock Bronco Raptor rear coil over shock and any spring package.

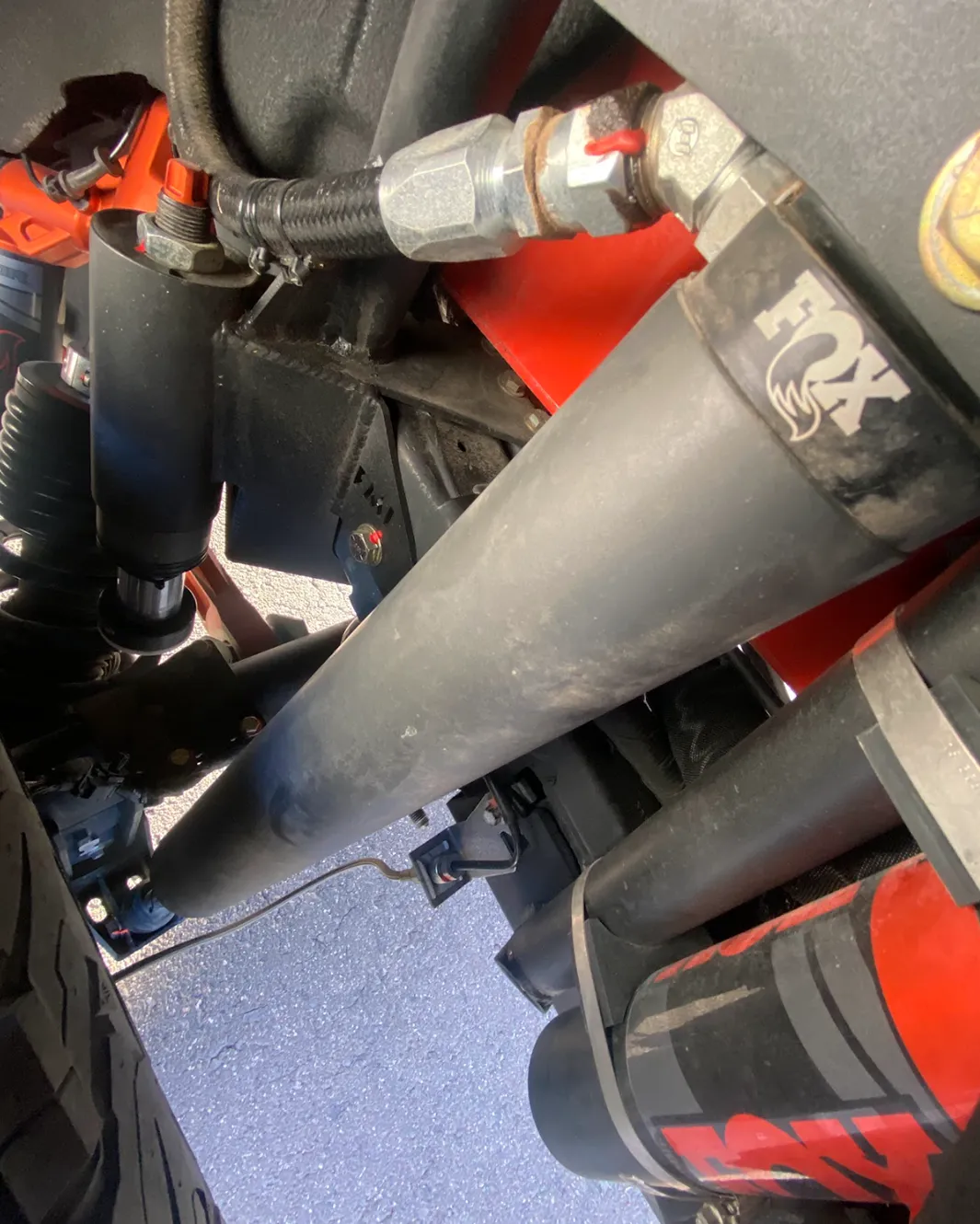

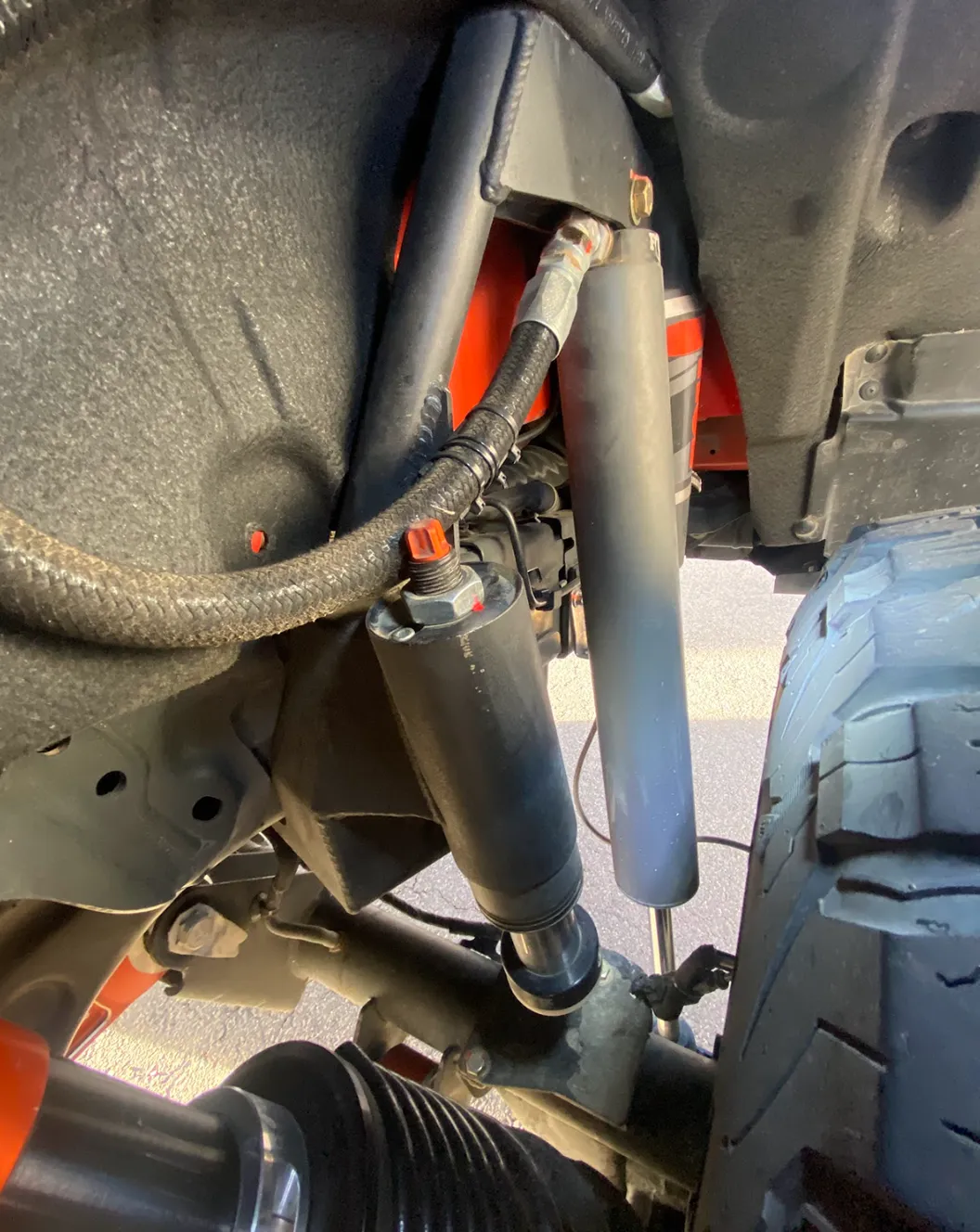

• The kit adds rear shock mount hoop and lower shock mount with protective skid to mount a 14" travel smooth body or special 3 tube by-pass shock (**** this is a custom tube layout bypass shock and wont work with off the shelf configurations).

• Fully bolt on and comes with all of the hardware required to install the kit.

• Pick the optional Fox 3.0" x 14" travel smooth body or custom Fox 3.0" x 14" travel by-pass shock and your preferred brand of 2.5" dia bump stop in the drop down selections.

• Designed to work with the off the shelf Fox 3.0 x 14 smooth body shock with small update to the reservoir hose and the hose connections. (****If you order the shock from us we will change the fittings and hose accordingly before shipping.)

• Retains the factory rear shock so the live valve electronics will still work as intended.

• You can use the factory rear springs and with no problem or upgrade to aftermarket springs depending on how much weight you plan to carry in the rear. (****Adding heavier rate springs may require you to re-valve the second shock to achieve the desired ride quality.)

• It has has been tuned and developed around the factory stock rear spring package with a

Works Great with:

Stock Rear Suspension Links and Stock Panhard bar

Kit Includes:

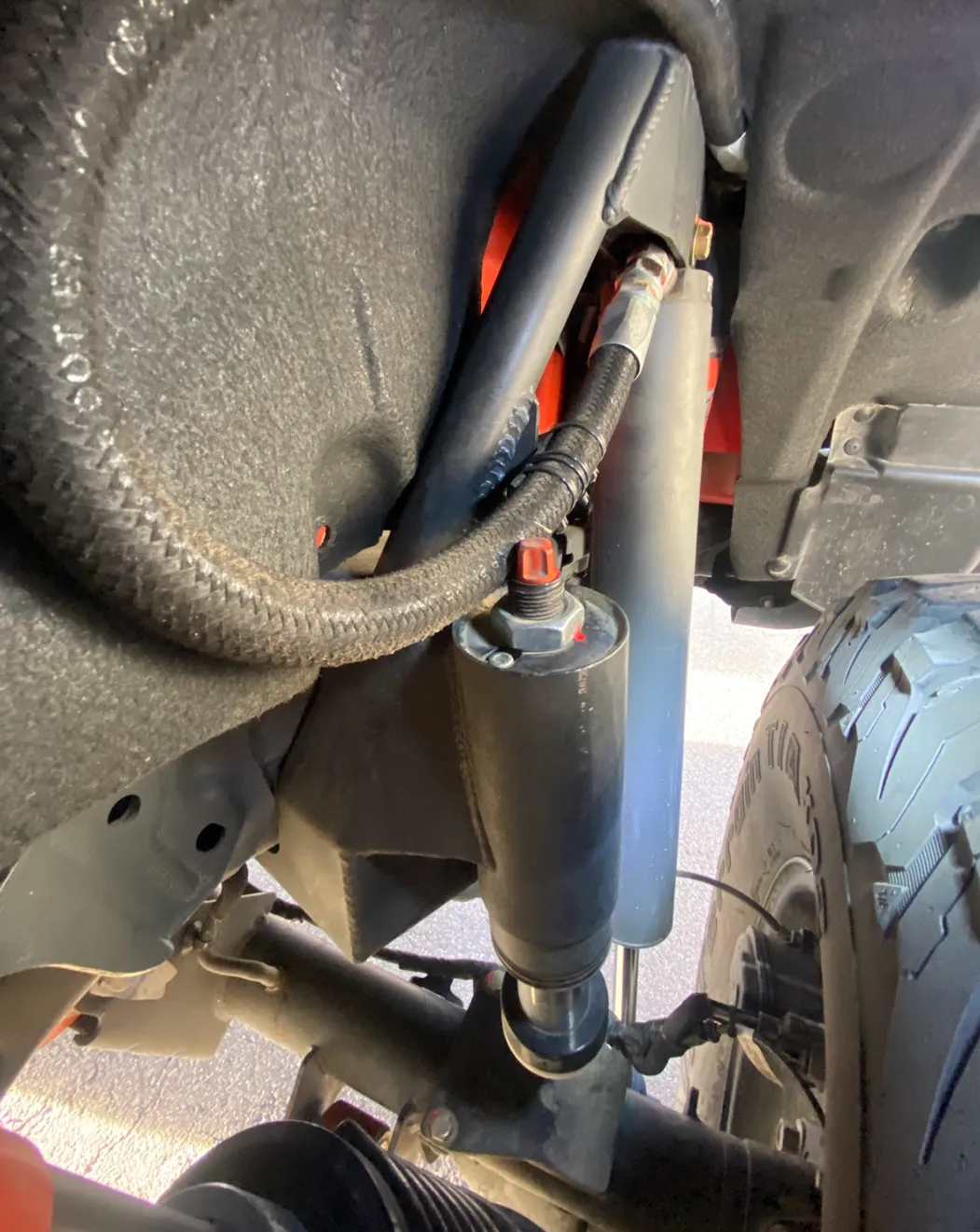

• Rear shock hoop and integrated hydraulic bump stop mount for 2.5" dia bump stop

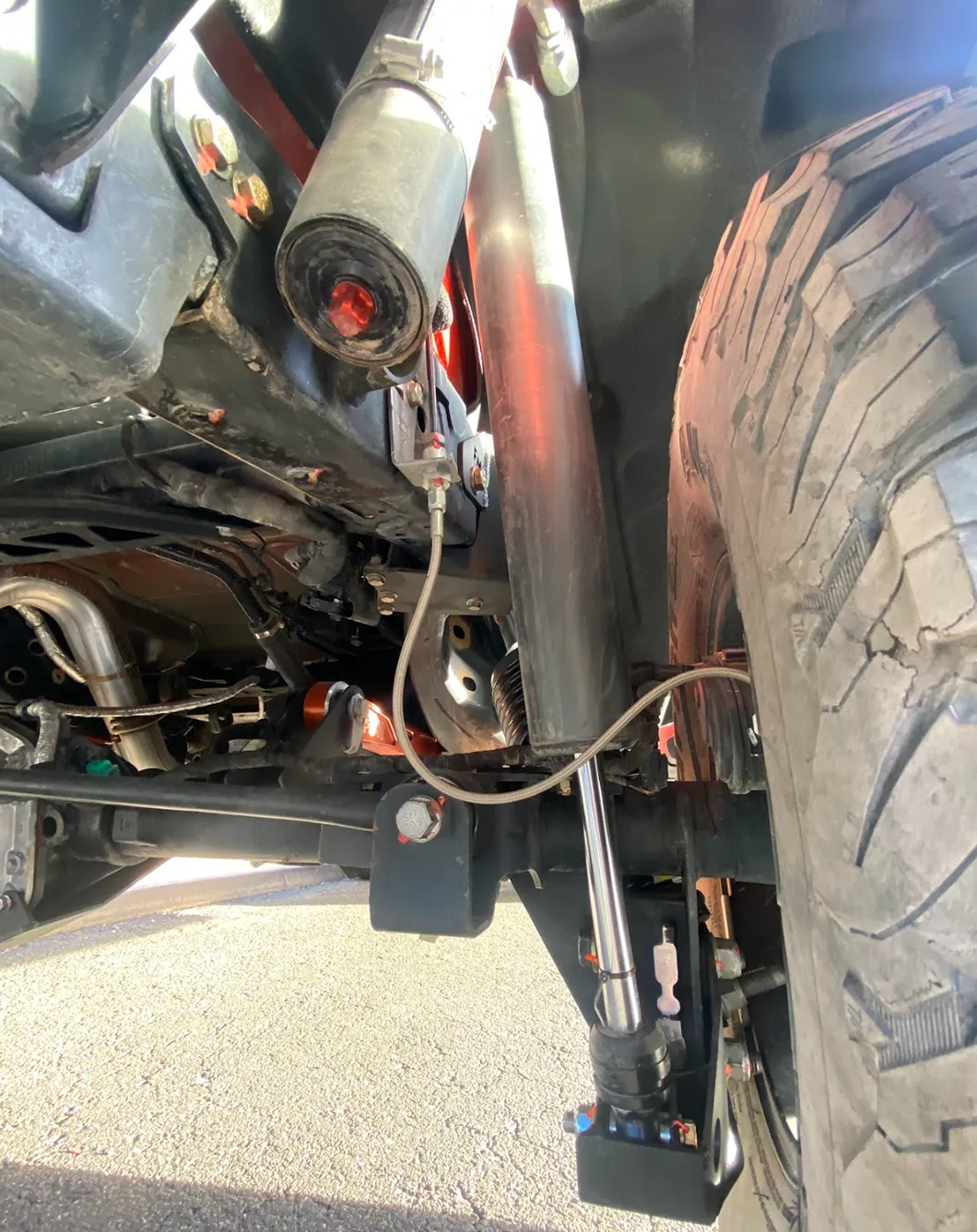

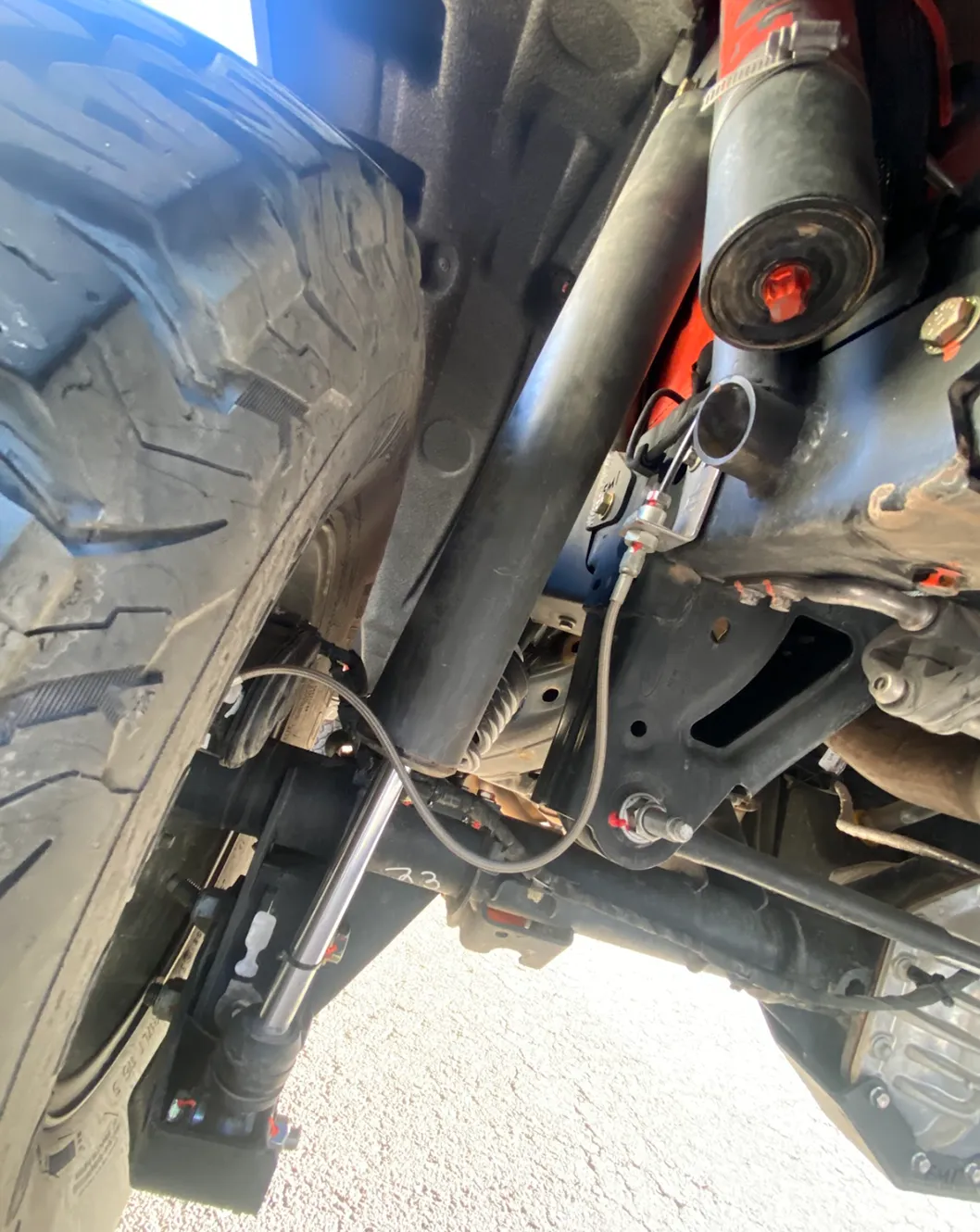

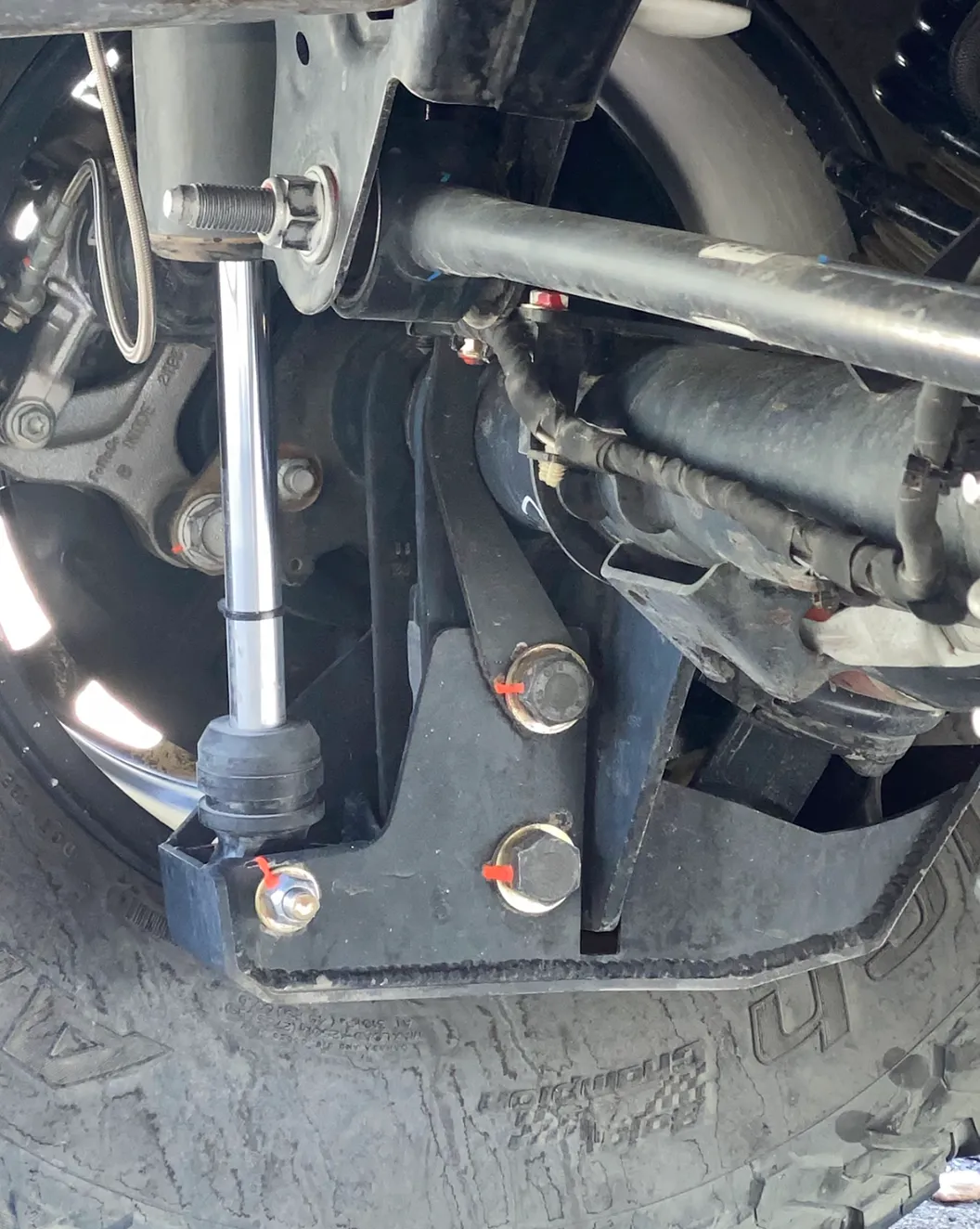

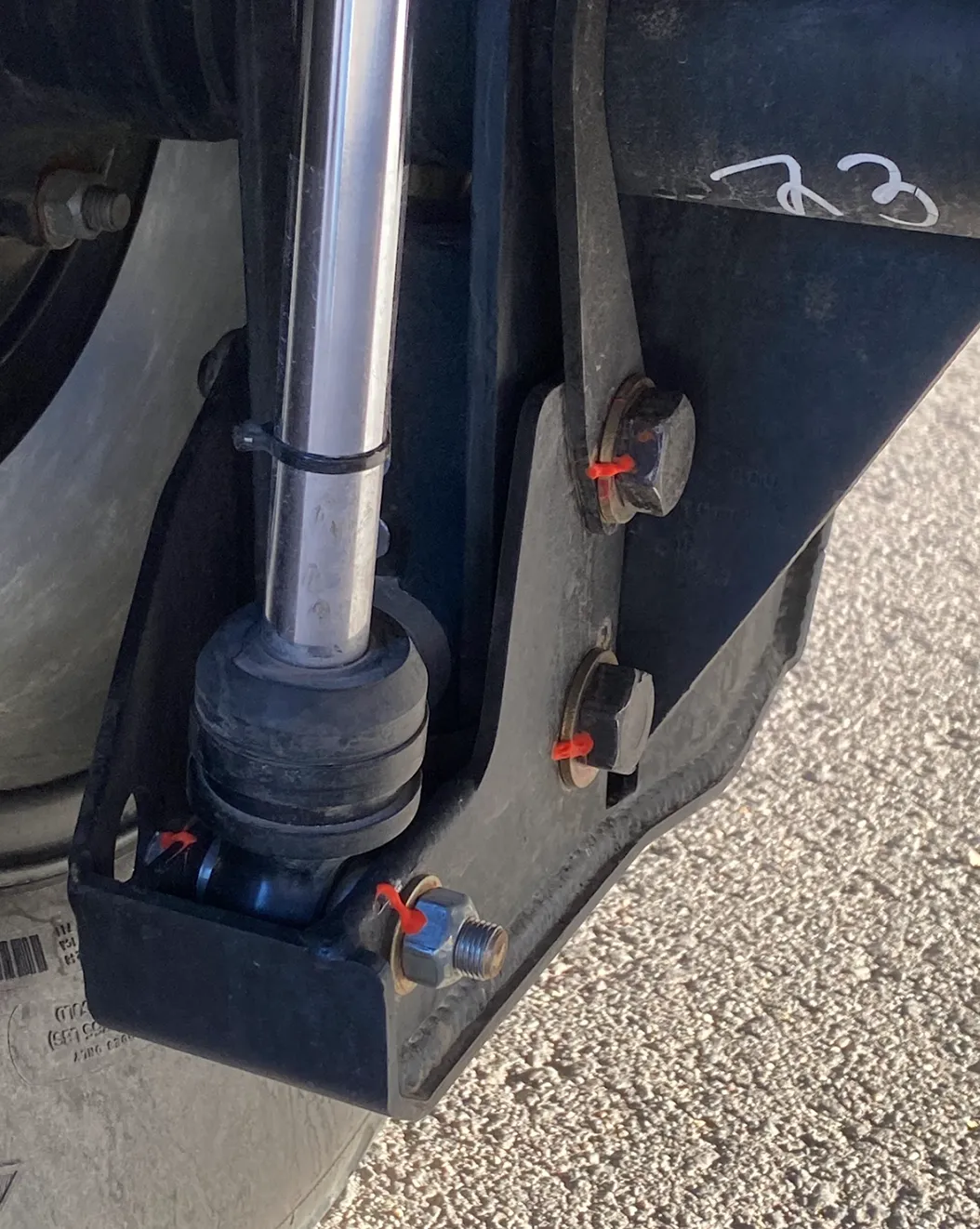

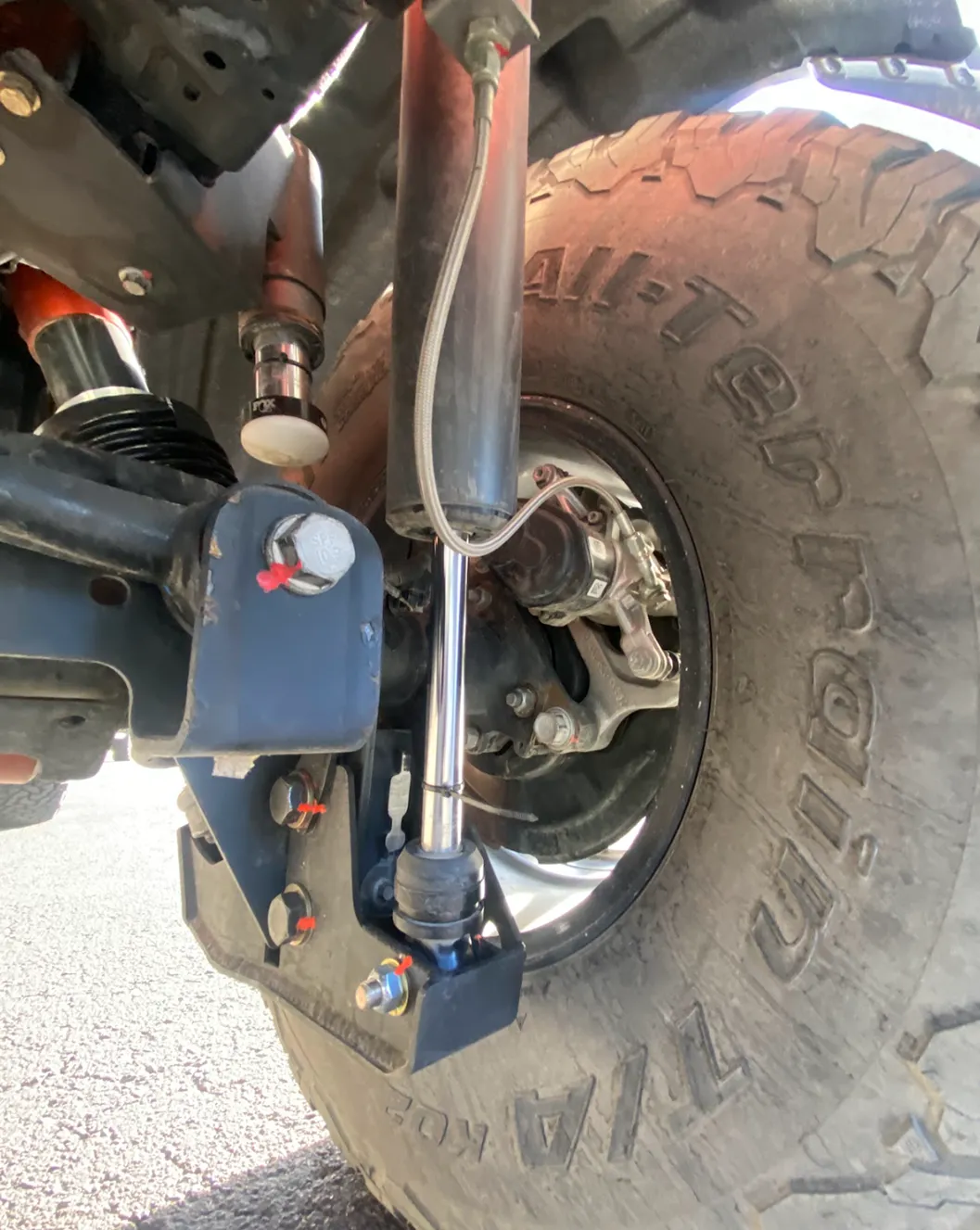

• Lower shock mount with integrated shock skid

• all hardware needed to mount the kit

This Kit Requires:

• For you to trim the rear fender liners to clear the shock and mount

• A custom layout bypass tube shock and will NOT work with any off the shelf 14" travel bypass shock.  Consult your Foutz Motorsports sales representative to order the correct rear shock kit

Please Know:

FOX shock availability is limited and has extreme time delays in supply timing for the custom 3.0 bypass shocks so call for details about timing before ordering that package.  Smooth Body shocks are normally readily available in a short lead time

*****THIS KIT REQUIRES A CUSTOM LAYOUT BY-PASS SHOCK*****
